Coastal municipalities and beach operators often face two simultaneous constraints at seaside waste drop-off points: accelerated corrosion driven by salt spray and humidity, and seagull-driven waste dispersion that increases cleaning rounds. This use case shows how Econox addressed these issues with a modular bin shelter manufactured in 1.5 mm galvanized steel and protected by a C4-class coating system, enabling scalable configurations and maintenance-ready on-site interventions.
Description of the use case / service / project
Operational context: coastal waste drop-off points exposed to corrosion and seagull activity
This is a use case (application example) relevant for:
Municipalities managing beach, promenade, harbor, or waterfront public spaces.
Coastal site operators (tourism areas, ports, event zones) responsible for keeping collection points clean and available.
Maintenance teams who must limit downtime and repeated corrective interventions in outdoor environments.
Seaside waste points typically operate in a combined stress environment:
Marine atmosphere: salt-laden air, high humidity, and wind-driven spray that accelerate corrosion on standard steel structures.
Bird pressure (notably seagulls): waste tearing/scattering that increases litter around the collection point and drives additional cleaning cycles.
Problem statement: reduce bird-related waste dispersion while ensuring marine-corrosion durability Technical issues commonly observed in coastal installations
Premature corrosion of enclosures and shelters, leading to more frequent repainting, part replacement, or full shelter renewal.
Waste dispersion caused by seagulls opening or tearing bags, increasing littering risk around the drop-off point.
Accelerated mechanical wear due to repeated handling, impacts, and exposure (wind-driven sand/salt, UV, humidity).
Operational impacts and risks for coastal stakeholders
Reduced perceived cleanliness in tourist areas, which can negatively affect user satisfaction and site reputation.
Higher lifecycle cost: corrosion-driven shortening of service life and recurring maintenance expenditures.
Solution by Econox: modular bin shelter with C4-class corrosion protection

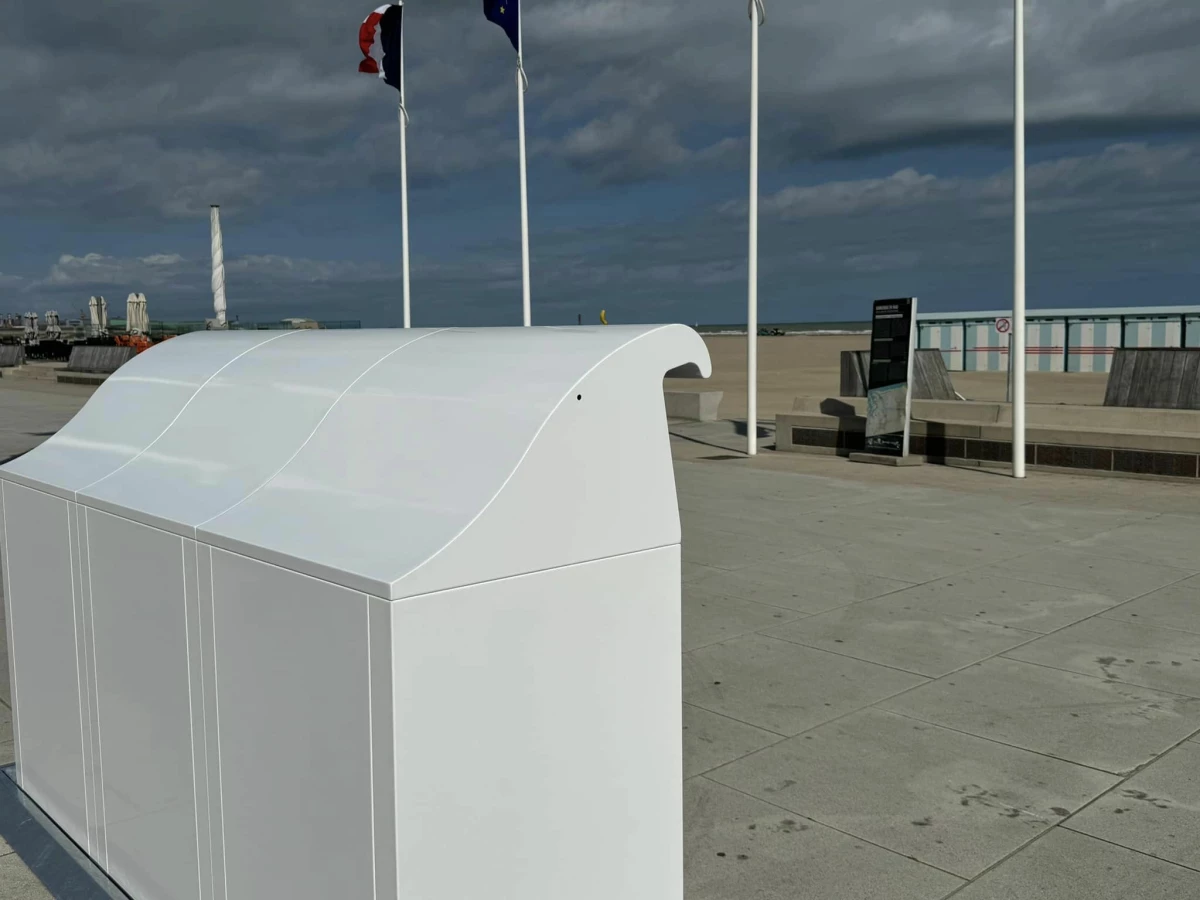

Econox provides a modular seaside bin shelter designed for coastal waste areas where corrosion resistance and reduced waste dispersion are priorities. The system is engineered for:
scalable capacity (single to multi-bin layouts),
maintenance-friendly interventions in public outdoor areas,
longer durability compared with non-marine-adapted metal shelters.
Materials and corrosion protection aligned with coastal corrosivity constraints
Structure material: 1.5 mm galvanized steel.
Protective coating: C4-class coating system designed for high-corrosion environments typically encountered in industrial and/or coastal atmospheres (ISO 12944 corrosivity category reference).
Modular architecture for standardization and capacity scaling
The shelter is built from standardized modules that can be combined to match the required number of bins and the site throughput.
Module dimensions: 770 mm (W) x 1486 mm (H) x 700 mm (D).
Module weight: 80 kg.
Available configurations: single, double, or triple (by combining modules).
This modularity supports a practical approach for coastal operators: deploy the base format on multiple sites, then increase capacity where seasonal peaks require it without changing the overall system design.
Assembly designed for maintenance in marine outdoor conditions
To reduce intervention time and simplify field maintenance, the shelter uses corrosion-resistant assembly components:
Optional removable platform for constrained foundations and seasonal layouts
In locations where foundations may be limited or temporary (beaches, promenades, seasonal arrangements), Econox can supply an optional removable platform to:
simplify initial installation,
enable relocation if the waste collection plan changes,
support seasonal operations and temporary site configurations.
Integration into coastal urban furniture standards
Finish customization: RAL color selection to align with municipal signage rules and harmonize with existing street furniture.
Why this design matches typical coastal waste-collection constraints
Corrosion management: galvanized steel combined with a C4-class coating system targets the main degradation drivers found in coastal atmospheres.
Operational flexibility: modular sizing allows a consistent technical standard across multiple sites while adapting capacity (single/double/triple).
Maintainability: stainless fasteners help reduce maintenance friction in corrosive environments where standard hardware can seize or degrade faster.
Deployment adaptability: the removable platform option supports constraints common to beach and promenade infrastructures.
Manufacturer and project delivery
This modular seaside bin shelter is delivered by Econox, a Lille-based metal fabrication specialist providing end-to-end manufacturing (cutting/punching, welding, bending, finishing/painting) for circular-economy street furniture and industrial projects.
